Carbon Steel Vs. Alloy Steel Vs. Galvanized Steel: Which Is Better for Structural Engineering?

In structural engineering, material selection is a game of balancing trade-offs. The choice between Carbon Steel, Alloy Steel, and Galvanized Steel represents the classic engineering trilemma: balancing low initial cost, ultra-high mechanical performance, and long-term environmental resilience.

While they all share an iron foundation, they serve vastly different roles on a construction site. Let’s break down this three-way battle to determine which steel is best suited for your structural needs.

1. The Competitors: A Quick Summary

To understand their roles, think of them in terms of their primary "engineering superpower":

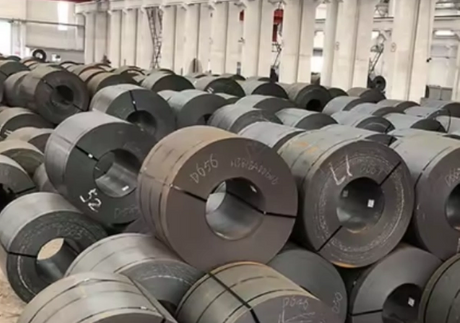

• Carbon Steel (The Economic Workhorse): Pure iron combined with carbon. It has no fancy additives or coatings. It relies on its simplicity to deliver raw, cost-effective strength.

• Alloy Steel (The High-Performance Powerhouse): Enhanced at the molecular level with elements like chromium, nickel, and molybdenum. It is engineered to achieve extreme strength and toughness.

• Galvanized Steel (The Environmental Shield): Carbon steel that has been dipped in molten zinc. It doesn't change the strength of the steel, but it creates an impenetrable barrier against rust.

2. The Three-Way Breakdown

When structural engineers evaluate these three materials, they pit them against each other across four critical project dimensions:

️ 1. Strength-to-Weight Ratio (Structural Capacity)

• Alloy Steel wins by a landslide. High-Strength Low-Alloy (HSLA) steels can bear immense loads with much thinner profiles. This allows engineers to design slender, iconic skyscrapers and massive bridge spans while drastically reducing the "dead weight" of the structure itself.

• Carbon Steel & Galvanized Steel tie for second. Because galvanized steel is just carbon steel with a surface coating, their load-bearing capacities are identical. They offer great standard strength but require much heavier, thicker profiles to support extreme loads.

 2. Corrosion Resistance & Maintenance Lifespan

• Galvanized Steel is the undisputed champion. Its zinc layer acts as a sacrificial anode, meaning the zinc will actively corrode itself over decades to protect the iron underneath. It easily offers a 50+ year maintenance-free lifespan in outdoor environments.

• Alloy Steel takes second place. Certain alloys (like weathering steel) develop a protective patina that slows down rust, but standard alloy steels will still degrade over time if not coated.

• Carbon Steel loses heavily. It has zero inherent corrosion resistance. Exposed carbon steel will begin to rust almost immediately, requiring expensive, recurring paint jobs and strict maintenance cycles.

 3. On-Site Fabricability & Weldability

• Carbon Steel is the easiest to work with. It can be easily cut, drilled, and welded on-site by standard crews without complex procedures or toxic hazards.

• Alloy Steel requires precision. Because of its chemical complexity, welding alloy steel often requires strict pre-heating and specialized welding rods to prevent the metal from becoming brittle and cracking.

• Galvanized Steel is the most problematic on-site. Welding galvanized steel vaporizes the zinc coating, creating toxic zinc oxide fumes that require heavy ventilation. Furthermore, the burnt-away coating must be painstakingly repaired on-site using zinc-rich paint to prevent future rust spots.

 4. Upfront Cost vs. Lifecycle Value

• Carbon Steel has the lowest upfront cost. If budget is the primary constraint and the structure is protected from weather, carbon steel is the default economic choice.

• Galvanized Steel has a higher initial cost, but the lowest lifecycle cost. The premium paid for factory galvanizing pays for itself over 20–50 years because it completely eliminates maintenance and repainting budgets.

• Alloy Steel is the most expensive upfront. The raw elements (nickel, vanadium, etc.) make it a premium material. However, because it is so strong, engineers can use less total tonnage of steel, which can sometimes offset the higher per-pound price by lowering shipping and foundation costs.

3. The Ultimate Comparison Table

4. The Structural Engineer's Verdict

Which steel is truly better? It depends entirely on the nature of the project's primary engineering constraint:

Use Carbon Steel if: The budget is tight, the structure is indoors or fully climate-controlled (like the internal frame of a commercial building or an indoor warehouse), and the project requires extensive on-site modification and standard welding.

Use Alloy Steel if: You are fighting immense weight, gravity, or dynamic forces. It is the non-negotiable choice for skyscrapers, long-span suspension bridges, high-seismic zones, and heavy industrial machinery where structural weight must be minimized and yield strength maximized.

Use Galvanized Steel if: Your structure is outdoors and exposed to harsh environments (like parking garages, outdoor stadiums, coastal docks, solar arrays, or highway infrastructure). If you want a "set-and-forget" structure that resists rain and humidity for 50 years without a single drop of maintenance paint, galvanization is the winner.

The Ultimate Hybrid Strategy

In modern reality, large-scale projects rarely choose just one. A masterfully engineered project uses all three: a Carbon Steel skeleton for the indoor rooms, Alloy Steel for the high-stress structural joints and mega-columns at the base, and Galvanized Steel for the exposed outdoor facades, parking decks, and roof supports.
