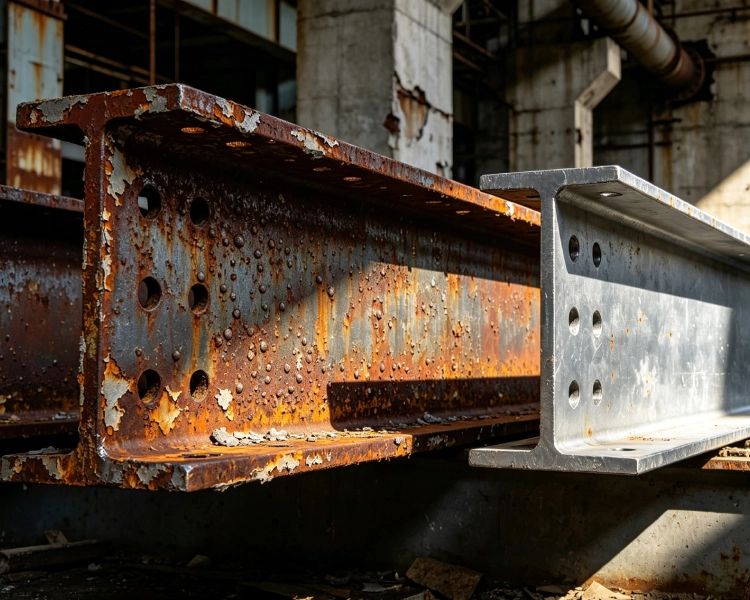

Carbon Steel vs. Galvanized Steel: Which is Better for Structural Engineering?

When selecting materials for structural engineering, the decision often comes down to balancing structural capacity with long-term durability. A frequent matchup in the industry is Carbon Steel versus Galvanized Steel.

While they share the same DNA, their performance in real-world environments is vastly different. One is the raw, high-strength workhorse of the construction world, while the other is armored against the elements. Which is the better choice for your structural project? Let's dive into the details.

1. Understanding the Core Difference

To compare them fairly, we must first understand what sets them apart:

• Carbon Steel: This is the base metal—an alloy of iron and carbon. It is incredibly strong and ductile, making it the fundamental building block of modern architecture. However, it lacks inherent protection against moisture and oxygen.

• Galvanized Steel: This is carbon steel that has undergone a hot-dip galvanization process. It is submerged in molten zinc (at around 450°C / 840°F), creating a multi-layered zinc-iron alloy coating. This coating acts as both a physical barrier and a sacrificial anode to protect the underlying steel.

2. Head-to-Head Comparison in Structural Engineering

️ Corrosion Resistance & Longevity

• Carbon Steel: Left untreated, carbon steel will rust almost immediately when exposed to atmospheric moisture. It requires immediate priming, painting, or specialized coatings on-site, and these coatings must be maintained every few years.

• Galvanized Steel: The zinc coating provides legendary corrosion resistance. In standard atmospheric conditions, galvanized steel can last 50+ years without maintenance, and even 20 to 25 years in harsh coastal or industrial environments.

Fabrication, Welding, and Repair

• Carbon Steel: It is the easiest material to weld, cut, and drill on a construction site. Structural engineers love it because changes or repairs can be made quickly without compromising the material's properties.

• Galvanized Steel: Welding galvanized steel is trickier. The zinc coating vaporizes under the intense heat of welding, creating toxic zinc oxide fumes that require strict ventilation. Furthermore, welding burns away the protective layer, meaning the weld joints must be manually repaired with zinc-rich paint on-site to prevent rust.

Cost Comparison: Upfront vs. Lifecycle

• Carbon Steel: The raw material cost is significantly lower. However, when you factor in the labor and material costs of blast-cleaning and painting the steel on-site, the price gap narrows.

• Galvanized Steel: It carries a higher upfront cost due to the factory galvanizing process. However, because it requires near-zero maintenance over its lifecycle, it is often much cheaper in the long run (Lowest Lifecycle Cost).

3. Quick Reference: Engineering Trade-offs

4. The Verdict: Which is Better?

Just like in most engineering dilemmas, "better" is defined by the environment and the budget.

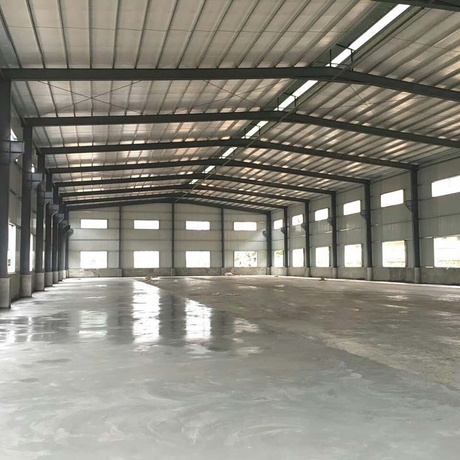

Choose Carbon Steel if: The structure is fully enclosed, climate-controlled, or protected from weather elements (e.g., internal building frames, indoor warehouses). It is also the ideal choice if the project requires extensive on-site modification and welding, where zinc coatings would disrupt the workflow.

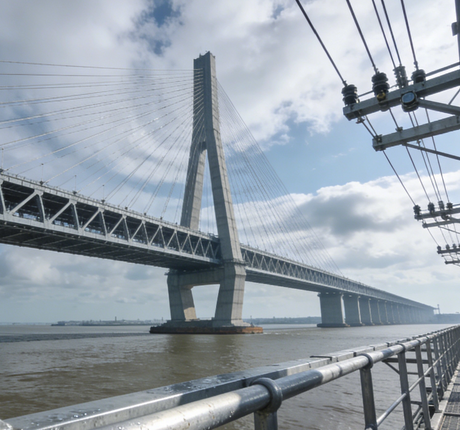

Choose Galvanized Steel if: The structure is exposed to the elements, moisture, or chemical environments (e.g., outdoor bridges, parking garages, solar panel racking, marine docks). If the client prioritizes a "set-and-forget" maintenance schedule over fifty years, galvanization is worth every penny of the initial premium.

In modern structural engineering, the most common practice is to use untreated carbon steel for the main indoor skeleton of a building, while reserving galvanized steel for any component that breathes outdoor air.
